Rich set of node and edge attributes

Just the facts:
Node attributes: text, font, color, shape, border style.
Edge attributes: color, pattern, thickness, arrow style.
Style sheets to set the attributes of a node or edge type.

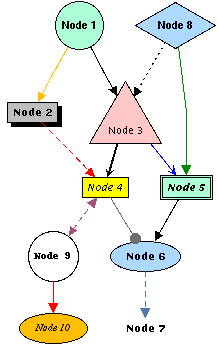

Each node and edge of a graph has its attributes, so the appearance of each individual object can be controlled. Choose the text and font of a node and define any color and shape (e.g. box, ellipse, circle, triangle, rhombus, even icons are available). For the edges, you can select the color, pattern, thickness and arrow shape. Style sheets can be used to define the attributes of nodes and edges that have a common visualization type.
